| Feature | Specification |
|---|---|

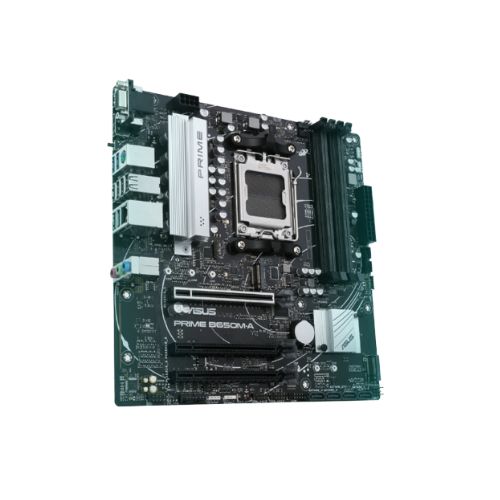

| Model | PRIME B650M-A |
| CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors |
| Chipset | AMD B650 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR5 5600(OC)/5400(OC)/5200/5000/4800, ECC and Non-ECC, Un-buffered Memory |
| Graphics | 1 x DisplayPort**, 1 x VGA port, 1 x HDMI® port*** |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (supports x16 mode), 2 x PCIe 4.0 x16 slots (support x1 mode) |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| USB | Rear USB (Total 8 ports): 2 x USB 3.2 Gen 2 ports (2 x Type-A), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), Front USB (Total 7 ports): 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Back Panel I/O Ports | 2 x USB 3.2 Gen 2 ports (2 x Type-A), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 1 x VGA port, 1 x HDMI® port, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack™ button, 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | Fan and Cooling related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 3 x 4-pin Chassis Fan headers, Power related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, Storage related: 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB: 1 x USB 3.2 Gen 1 connector (supports USB Type-C® ), 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, Miscellaneous: 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin System Panel header |
| Special Features | ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync |
| Software Features | ASUS Exclusive Software: Armoury Crate, AI Suite 3, ASUS CPU-Z, Norton Anti-virus software (Free Trial version), WinRAR, UEFI BIOS |
| Accessories | Cables: 2 x SATA 6Gb/s cables, Miscellaneous: 1 x I/O Shield, 1 x Screw Package for M.2 SSD, Documentation: 1 x User guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | mATX Form Factor |
| Dimensions | 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
