Key features of the ONV-IPS3064PFG Gigabit 6-port industrial PoE switch
Specification of the ONV-IPS3064PFG Gigabit 6-port industrial PoE switch
| Category | Details |
|---|---|
| Model | ONV-IPS3064PFG |
| Brand | ONV |
| Switch Type | Industrial Unmanaged PoE Switch |
| Total Ports | 6 Ports |
| PoE Ports | 4 × 10/100/1000Mbps RJ45 PoE Ports |
| Uplink Port | 1 × Gigabit RJ45 |
| SFP Port | 1 × 1000Base-X SFP Fiber Port |
| PoE Standard | IEEE 802.3af / 802.3at |
| Max PoE Power Per Port | 30W |
| PoE Power Budget | Up to 120W |
| Switching Capacity | 12Gbps |
| Forwarding Rate | 8.93Mpps |
| MAC Address Table | 8K |
| Buffer Memory | 2M |
| Jumbo Frame | 9.2K |
| Transmission Mode | Store-and-Forward |
| Input Voltage | DC 44–56V |
| Power Input | Dual DC Power Input |
| Installation Type | DIN Rail / Desktop |
| Housing Material | Aluminum Alloy |
| Cooling System | Fanless Passive Cooling |
| Protection Level | IP30 |
| Lightning Protection | 6KV Surge Protection |
| Operating Temperature | -40°C to +75°C |
| Humidity | 5%–90% RH Non-Condensing |
| Dimensions | 98 × 88 × 30 mm |
| Weight | Approx. 0.25 kg |
| Certification | CE, FCC, RoHS |
| Warranty | 5 Years |

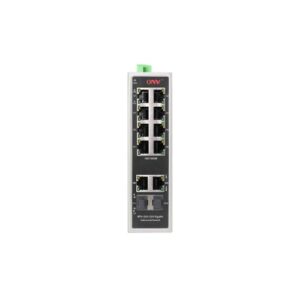

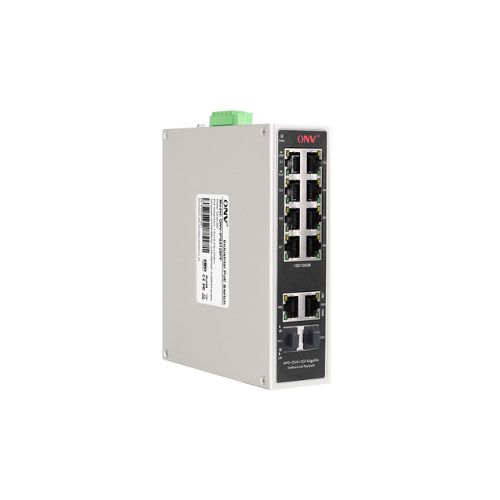

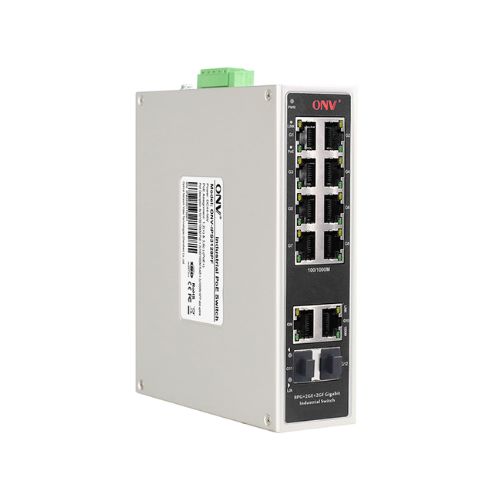

The ONV-IPS3064PFG Gigabit 6-port industrial PoE switch is a rugged industrial-grade networking solution designed for harsh environments where stable network communication and reliable PoE power delivery are essential. Built for industrial automation, CCTV surveillance, transportation systems, factories, and outdoor networking projects, this switch delivers dependable performance with strong environmental protection.
The switch features 5× 10/100/1000Mbps Gigabit RJ45 ports along with 1× Gigabit SFP fiber uplink port, providing flexible copper and fiber network connectivity for long-distance and high-speed transmission. Port 1–4 support IEEE 802.3af/at PoE standards, with up to 30W power output per port, allowing direct power supply to IP cameras, wireless access points, industrial sensors, and other PoE devices.
Designed specifically for industrial use, the ONV-IPS3064PFG supports dual DC power input with anti-reverse protection, helping maintain stable operation in demanding environments. Its unmanaged plug-and-play design allows easy deployment without complex configuration, making installation quick and convenient.

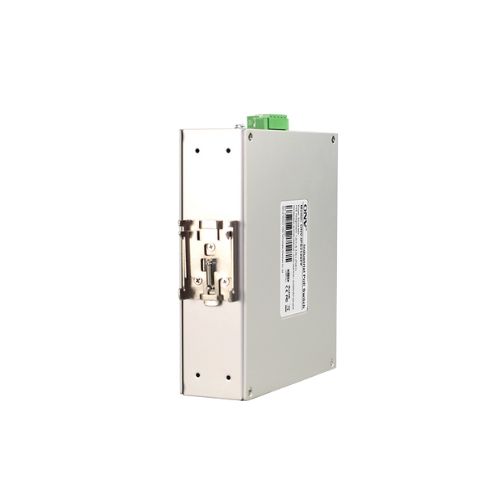

One of its key strengths is its industrial-grade durability. The switch operates within a wide temperature range of approximately -40°C to +75°C, making it suitable for extreme environments such as factories, transportation systems, mining areas, and outdoor installations. It also supports DIN rail mounting, allowing easy integration into industrial control cabinets and automation systems.
The device includes advanced protection features such as 6KV lightning protection, surge protection, anti-vibration, and anti-shock design, ensuring long-term stable performance in electrically noisy or physically demanding conditions.
Its full Gigabit architecture supports non-blocking wire-speed forwarding, helping maintain smooth data transmission for high-resolution IP surveillance and industrial network communication. The SFP fiber uplink also allows long-distance backbone connectivity for larger industrial deployments.
The latest price of the ONV-IPS3064PFG Gigabit 6-port industrial PoE switch in Bangladesh is 16,500 BDT. You can buy the ONV-IPS3064PFG Gigabit 6-port industrial PoE switch from us at the best price. You can either buy it through our website or directly visit our office. Our Office Address: 51, Kazi Villa, 3rd Floor, Suvastu Arcade ICT Bhaban Goli, New Elephant Road, Dhaka-1205, Bangladesh. Contact Us: +88 01894-68343
