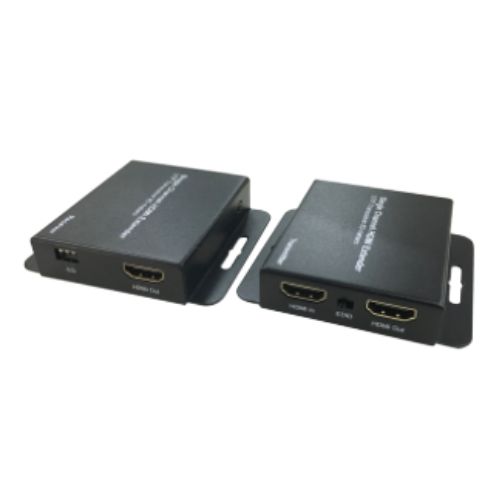

Dahua DH-PFM700-E HDMI Extender

BDT 3,500.00 ~~BDT 4,000.00~~

Power supply: Input voltage DC5V, only supply for transmitter
Transmission effect: Real-time transmission HDMI video signal, no delay, strong anti-interference
Dahua DH-PFM700-E HDMI Extender
Infrared function: support to transmit one-way infrared remote control signal
Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities

Back to Shop

Model	PFM700-E
Properties
Transmission Signal	1channel HDMI
Transmission Distance	50m (max. 164ft), with CAT6 of pure copper cable (DC impedance is less than 9.5 ohms for every 100 meters (328 ft).
Video Transmission Properties
Video Signal Input Interface	HDMI interface
Video Input Port	HDMI interface
Twisted-pair Video Transmission Port	RJ45 port
Input Voltage	DC5V
Power	TX<3W, RX<3W
HDCP Version	Support HDCP1.2
HDMI Version	Support 1.3 and lower version
Resolution Output Signal
Resolution	1080P/1080I/720P/576P/576I/480P/480I
Output Voltage	0.5~1.5Vp-p
Impedance
END	±6KV(contact discharge)
	±8KV(air discharge)
	Per: IEC61000-4-2 1995 (GB/T 17626.5)
Anti-thunder	±2KV (common mode), ±1KV (differential mode)
Anti-thunder	Per: IEC61000-4-5 1995 (GB/T 17626.5)
Stability
MTBF	>5000h
Physical Properties
Dimension(LWH)	Transmitter: 79.5mmx68mmx16.5mm (port length included) (3.13”x2.68”x0.65”) Receiver: 79.5mmx68mmx16.5mm(3.13”x2.68”x0.65”)
Shell	Iron
Color	Black
N.W.	Transmitter: 133g(0.29lb) Receiver: 133g(0.29lb)
Environmental
Working Temperature	-10℃~55℃(14℉~131℉)
Storage Temperature	-20℃~80℃(-4℉~176℉)
Humidity	0~95%(non-condensing)
Certification
Certification	CE/FCC

Dahua DH-PFM700-E HDMI Extender

The Dahua 1-CH HDMI Extender is a dependable and cost-effective way to boost HDMI signals up to 50 meters (164 feet) utilizing a single UTP (CAT-5E or CAT-6) cable. HDMI 1.3, EDID, and one-way infrared remote control signal transfer are all supported. It is also shielded from thunder, static, and interference. It is simple to use and install, as there is no need to install a driver application or configure network specifications.

What is the Price of the Dahua DH-PFM700-E HDMI Extender in Bangladesh?

The latest price of the Dahua DH-PFM700-E HDMI Extender is 3,500 BDT. You can buy the Dahua DH-PFM700-E HDMI Extender from us. To buy this product, you can either buy it through our website or directly visit our office. Our Office Address: 51, Kazi Villa, 3rd Floor, Suvastu Arcade ICT Bhaban Goli, New Elephant Road, Dhaka-1205, Bangladesh. Contact Us: +88 01894-683430
