| Specification | ONV-PD5202-at |
|---|---|
| Model | ONV-PD5202-at |
| Interface Characteristics | Fixed Port |
| Fixed Port | 110/100Base-TX RJ45 port (Data), 18P male output port (Data), 1*DC5521 power port (Power) |
| Ethernet Port | Ethernet port can support 10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption |
| Transmission Bandwidth (Rate) | 10/100Mbps |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter), 100BASE-TX: Cat5 or later UTP(≤100 meter) |
| LED Indicator | Working indicator: POE (Yellow) |
| PoE & Power Supply | PoE Port (PD) |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3x |
| Power Supply Pin | 1/2 (+), 3/6 (-)& 4/5 (+), 7/8 (-) |
| Input Voltage | 44-57VDC |
| Output Voltage | Default 12VDC± 0.5V, optional 5V ,9V,24VDC, Default DC5521 plug, optional Micro USB power plug |
| Power Consumption | Standby<1W, Full Load<24W |
| Conversion Efficiency (Output: Input) | ≥82% |
| Operation TEMP / Humidity | -20~+55°C, 5%~90% RH Non condensing |
| Storage TEMP / Humidity | -40~+85°C, 5%~95% RH Non condensing |
| Dimension (LWH) | 853126mm, cable length:≤150mm |
| Net /Gross Weight | <0.1kg /<0.15kg |
| Lightning Protection | Lightning protection: 4KV 8/20us, Protection level: IP40 |
| Warranty | 1 year, lifelong maintenance. |

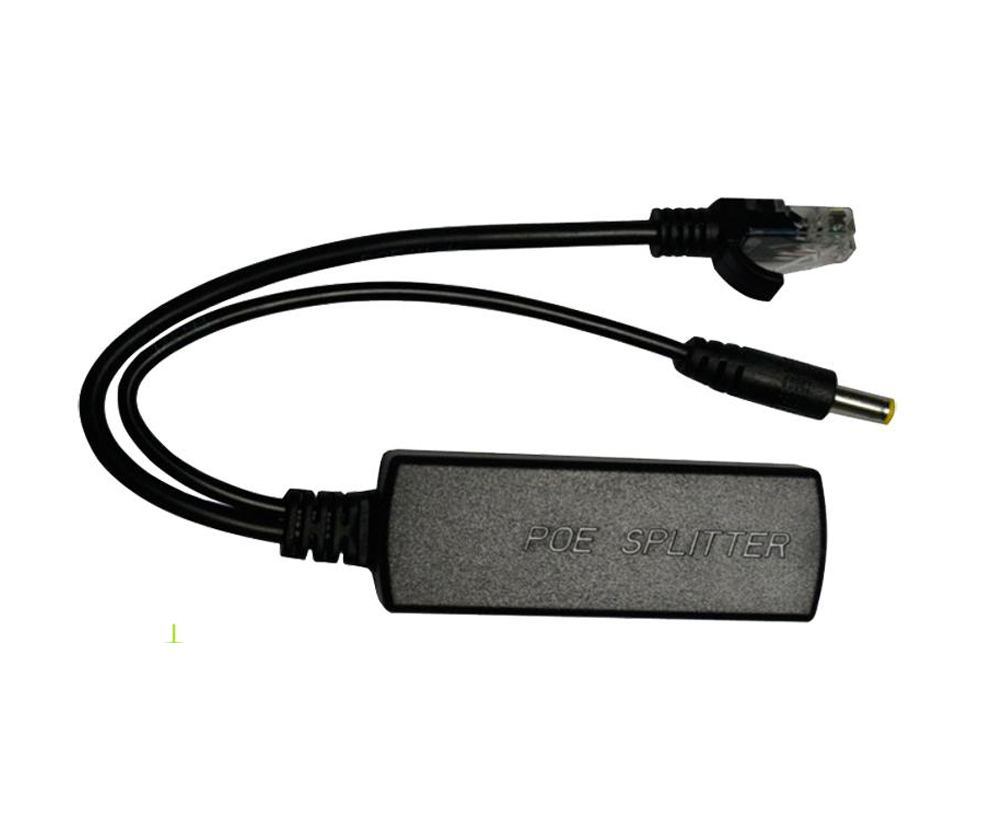

The ONV PD5202-at 10 to 100 Mbps PD PoE Splitter Cable allows you to power and connect non-PoE devices over a single Ethernet cable. It is compatible with IEEE802.3af/at PoE standards and can provide up to 13W of power to your device.
The ONV PD5202-at 10 to 100 Mbps PD PoE Splitter Cable is easy to use and install. Simply connect the PoE splitter to your PoE switch or injector using the Ethernet cable included in the package. Then, connect your non-PoE device to the PoE splitter using the 8P male output port. The ONV PD5202-at will automatically detect and power your device.
FEATURE
10/100Mbps fast Ethernet
◇ Support IEEE802.3af/at standard, Both mid-span ( 4/5+, 7/8- ) and end-span ( 1/2+, 3/6- )
◇ Output voltage:12VDC(Default), 5~24VDC can be customized, with low ripple.
◇ Input voltage 44-57VDC, rated output power 12W, greater than 82% efficiency
◇ Support short circuit, over current and over temperature protection
◇ 1500V high voltage isolation (input stage to output stage) (only applicable to ONV-PD5202, ONV-PD5202-at)
◇ DC interface has dustproof and waterproof measures
The ONV PD5202-at 10 to 100 Mbps PD PoE Splitter Cable is ideal for use in a variety of applications, such as:
Here are some of the benefits of using the ONV PD5202-at:
What is Benefits ONV PD5202-at 10 to 100 Mbps PD PoE Splitter Cable ?
